Technical Specifications:
Length: 6" / 7.5" Including fittings
Height: 5.75"
Width: 3.5"
Surface Area: 775" Sq *More than 2X the reactor area of other cells in this
price range!
Hose Fittings: 3/8" NPT - 3/8" Barbed for 1/2" Hose (Can be swapped out in
seconds for your own needs)
Optimal Performance: 12-14 Volts DC (Automotive), 40-60 amps @ 12-14v DC W/PWM
MMW: 6 to 7 MMW avg
Arrangement +NNNNN-NNNNN+NNNNN-NNNNN+NNNNN- (5 Neutral)
Efficiency Less current loss while better utilizing current balance through
the cell. This allows for more production for each amperage consumed by the
dry cell.
|
Price: $145.00
To make a purchase,
Click Here

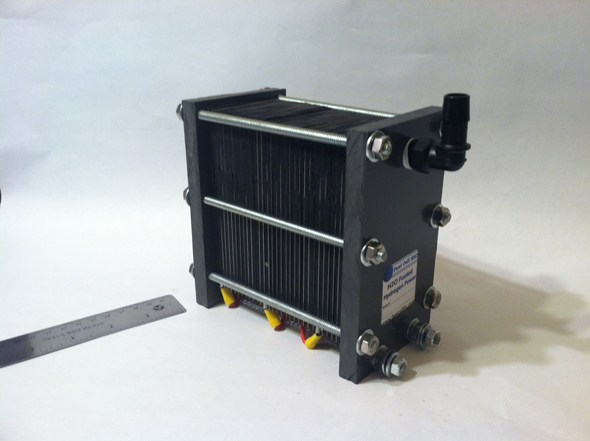

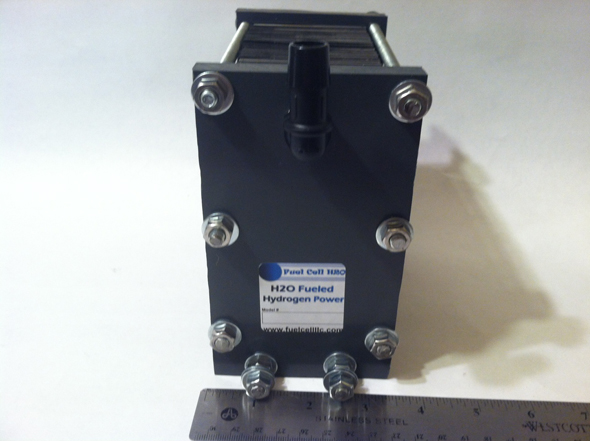

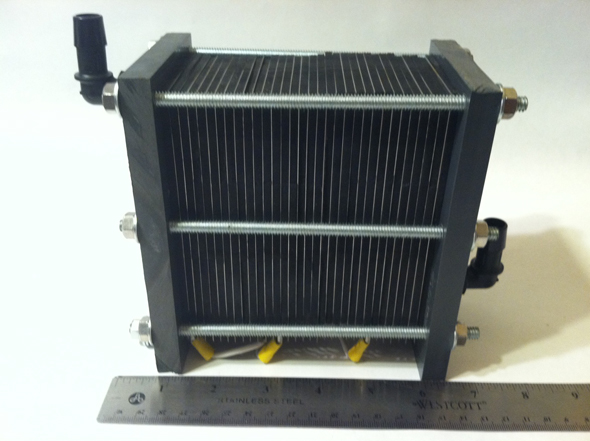

The AU31 Cell is our automotive cell for motorcycles and automobiles with tight
engine compartments such as compacts. The cell incorporates maximum efficiency, for the power requirements under operating conditions. This cell packs a punch
for its size, incorporating 31 plates for increased performance with less energy. The compact size makes this cell ideal for any automotive requirement
for those newer vehicles that lack in space.
There are 3 Cell blocks in the AU31, which each cell block is capable of of operating between 5 amps @ 12-14v through
25 amps @ 12-14v. Production range for the AU31 is is 2 LPM to 4.5+ LPM under
normal operating conditions. The AU31 can produce more than 4.5 LPM for short
durations. |
