Technical Specifications:
Length: 4.5" (fittings included)
Width: 4.5"
Height: 8"
Power Requirements: 12v-14v / 20-60 Amp
Plates: 19
Gaskets: 20
Fittings/Plumbing: 4 X 3/8" NPT Elbows
* Can use 1/2" Barbed fittings if needed by the user. 3/8" NPT X 1/2" Barbed
|
Price: $120.00
To make a purchase,
Click Here The GA19 Cell is our automotive cell, incorporating maximum efficiency, for the power requirements under operating conditions. This cell packs a punch, incorporating
19 plates for increased performance with less energy. The compact, size makes this cell ideal for any automotive requirement from small compact cars to heavy duty pickups.
There are 2 Cell blocks in the GA19, which each cell block is capable of operating between 5 amps @ 12-14v through 25-30 amp @ 12-14v. Production range for the GA19
is is 2 LPM to 4+ LPM.

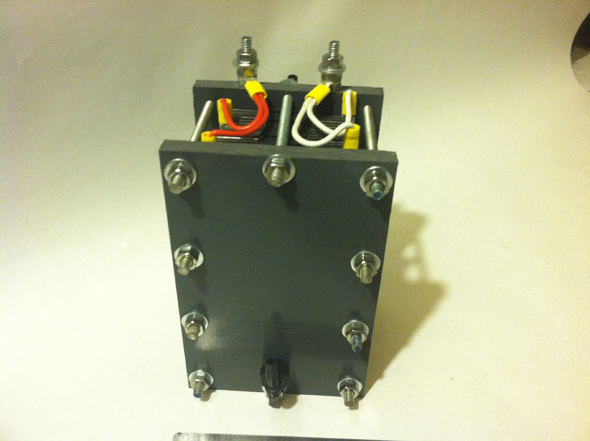

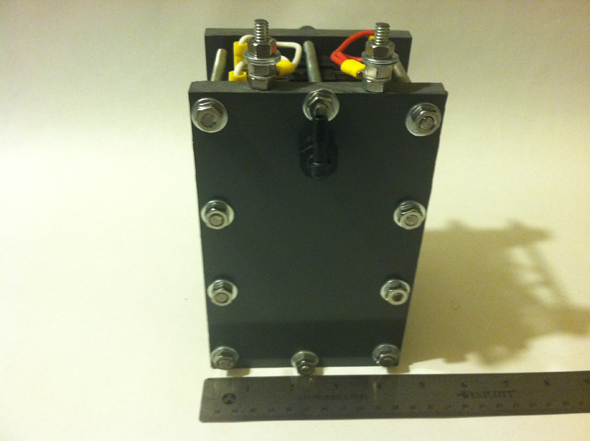

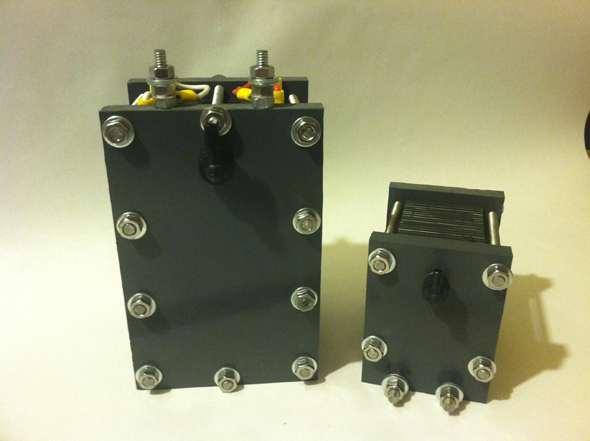

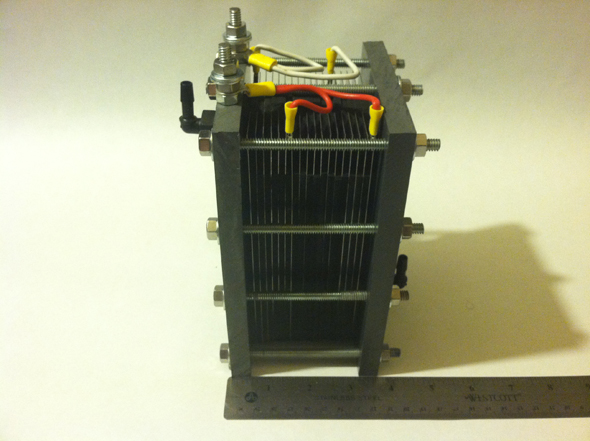

The GA19 Cell comes pre-assembled as seen in the images on this page.
|
